¶ 旧版设备？看这里
新版设备和旧版设备唯一区别，AI/DI/DO/GPS 读取方式不同，其它使用均为一致
¶ 视频集合
¶ 激活、配置和DevelopLink Iot[点我观看]
¶ 新版ZL420/425/463使用教程[点我观看]
¶ 新版ZL420/425/463使用教程
适用于ZL425，以及202409月后发货的zl420，zl463型号设备。升级了模拟量测量精度，AI测量模式可以软件切换。
注意新版本有改动，一定不能启用GPS选项，保持关闭即可，和使用无关
¶ 方法1：直接导入json（推荐）

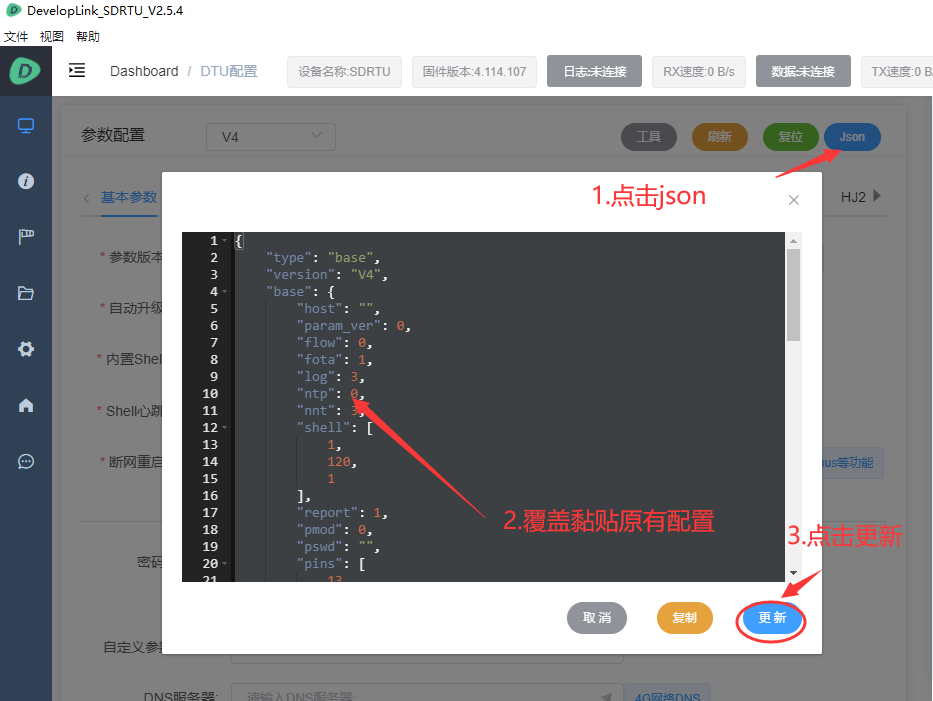

Json在此页的最后，直接复制json导入设备即可。
¶ 方法2：快速添加
直接在Modbus快速指令栏选择 新RTU 指令点快速添加，然后需要启用串口3， 波特率115200，pir选NONE或者18
¶ 方法3：手动配置
主要配置接口和modbus两个功能模块，接下分别对接口和modbus进行配置。

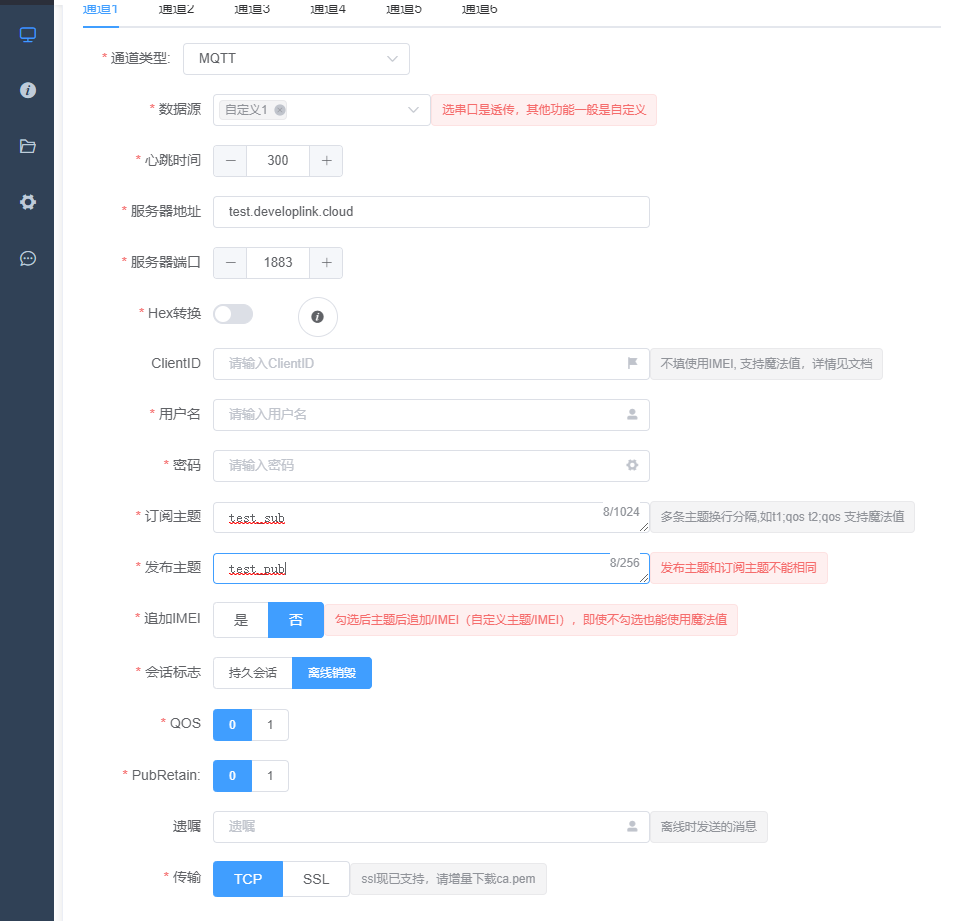

¶ 接口配置
其中串口1的串口参数（波特率、数据位、校验位、停止位），可以根据外接的传感器对应设置，用户可修改。

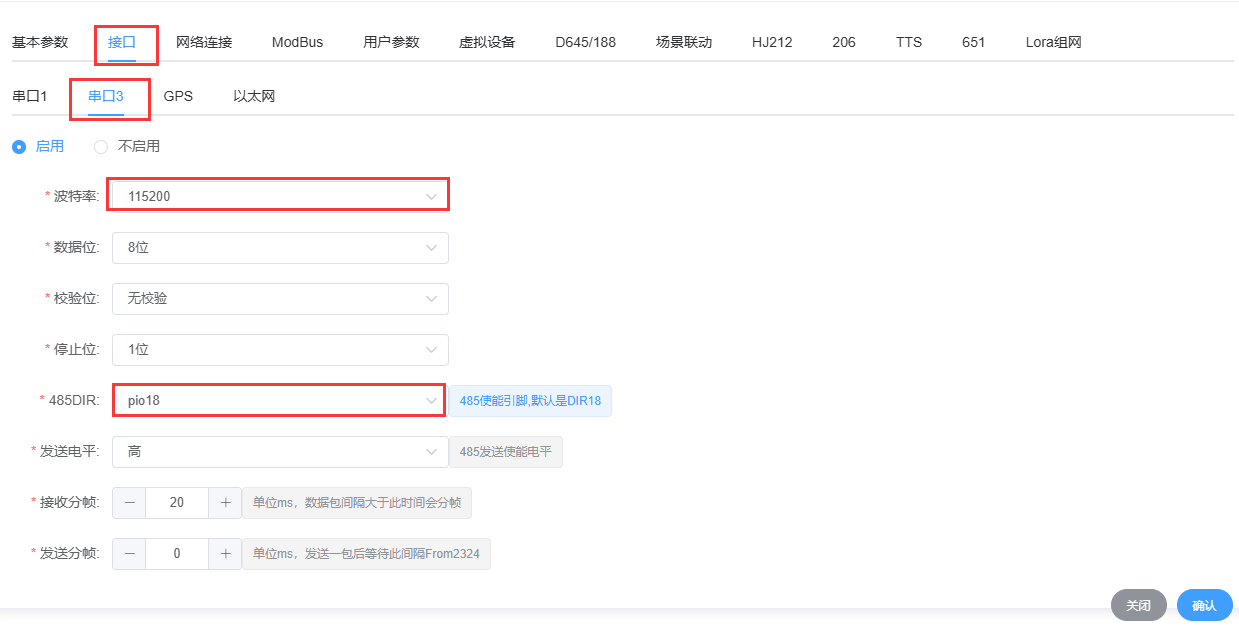

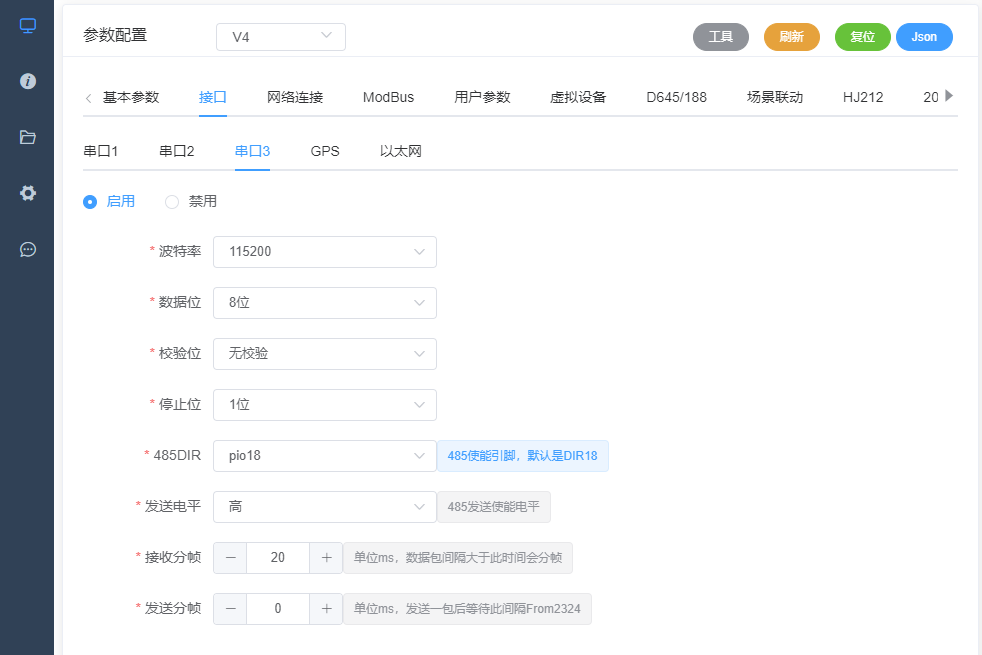

串口3的串口参数（波特率、数据位、校验位、停止位），不可修改，默认为115200，8，N，1。
¶ Modbus配置

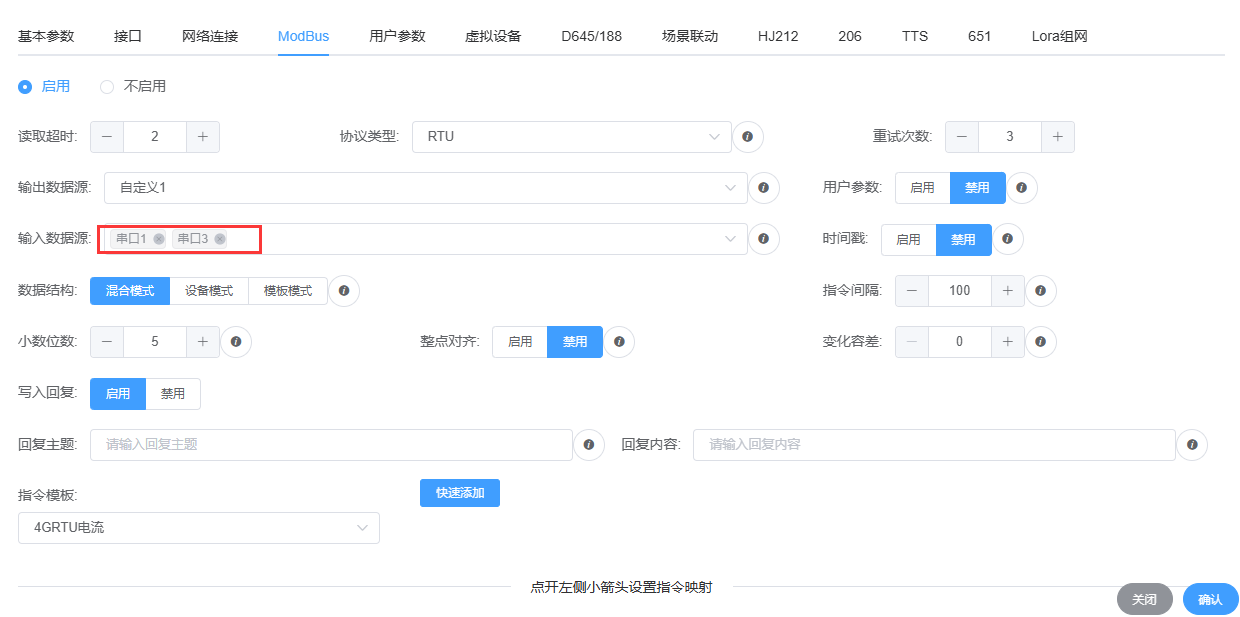

输入数据源选择串口1和串口3。下面分别配置了4路模拟量AI、4路数字量DI、4路继电器DO和GPS。
AI默认模式为15，该模式下均为电流检测。若需测量电压，或者二者都要，切换到相应的模式即可。总共有16种模式，具体的模式请见此页最后。
设备ID 3|1,其中的3表示将指令只发给串口3。若串口1接了传感器，且ID为1，那么设备ID要写成1|1,如果设备ID直接配置
1，会和串口3冲突。

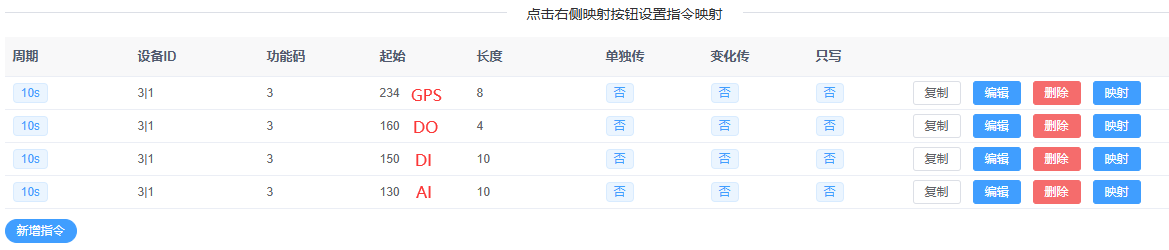

以下是各个功能详细的寄存器地址配置。

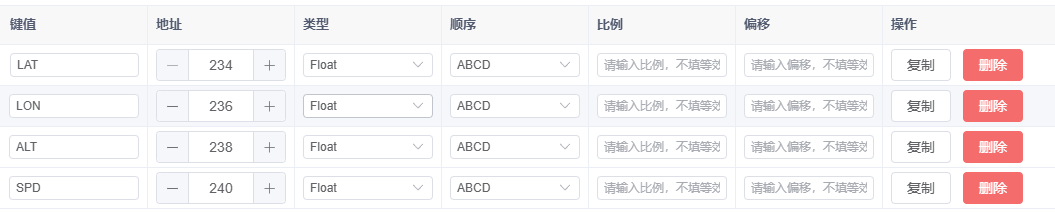

GPS的配置，寄存器地址对应234-240，类型为float。

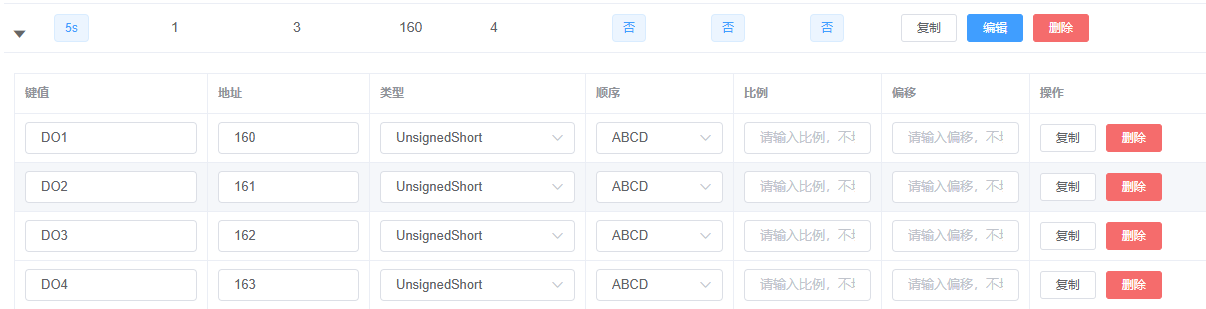

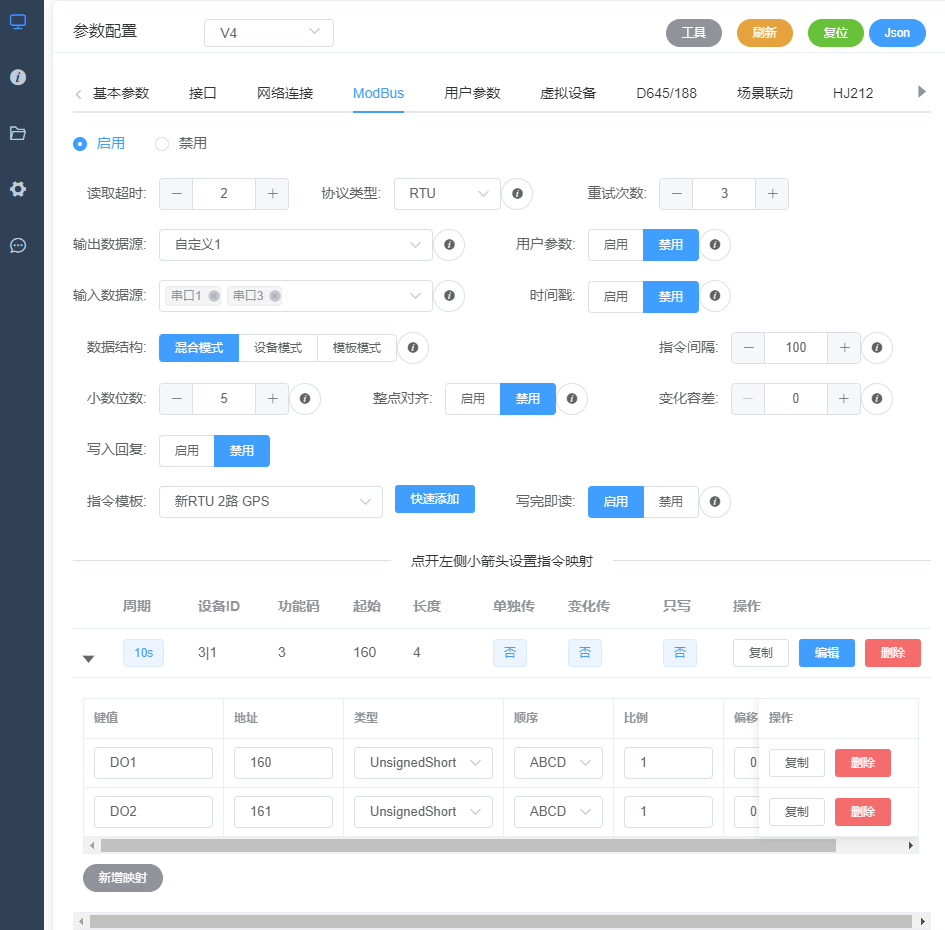

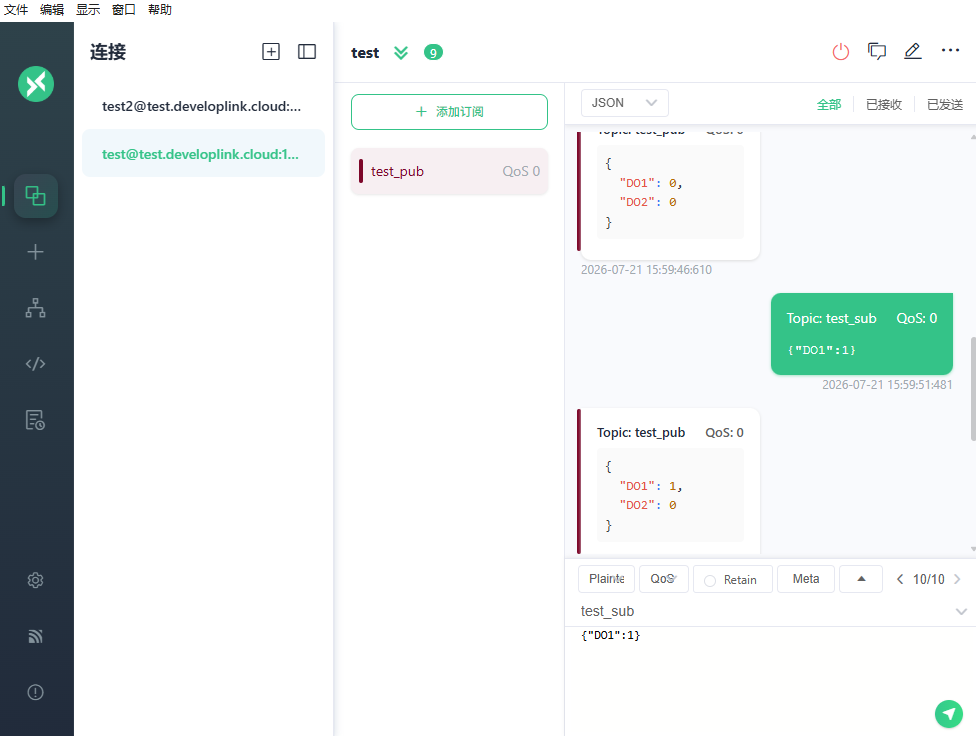

4 路继电器DO的配置，寄存器地址对应160-163，类型为UnsignedShort。

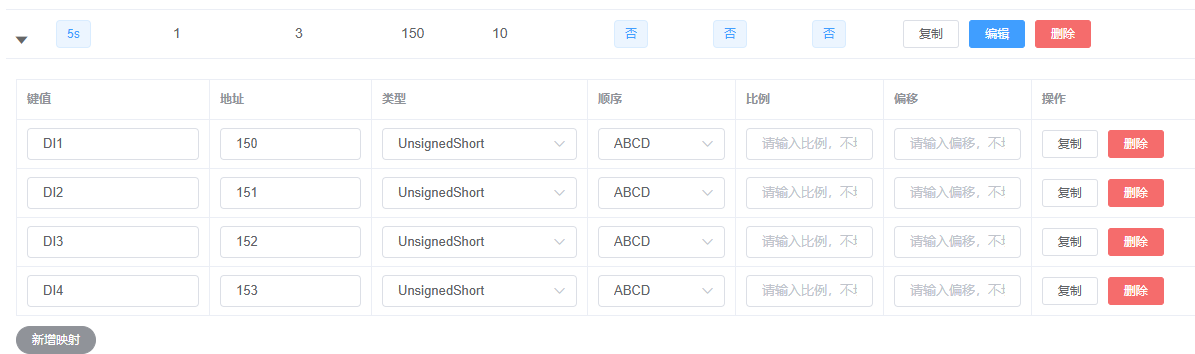

4 路数字量DI的配置，寄存器地址对应150-153，类型为UnsignedShort。

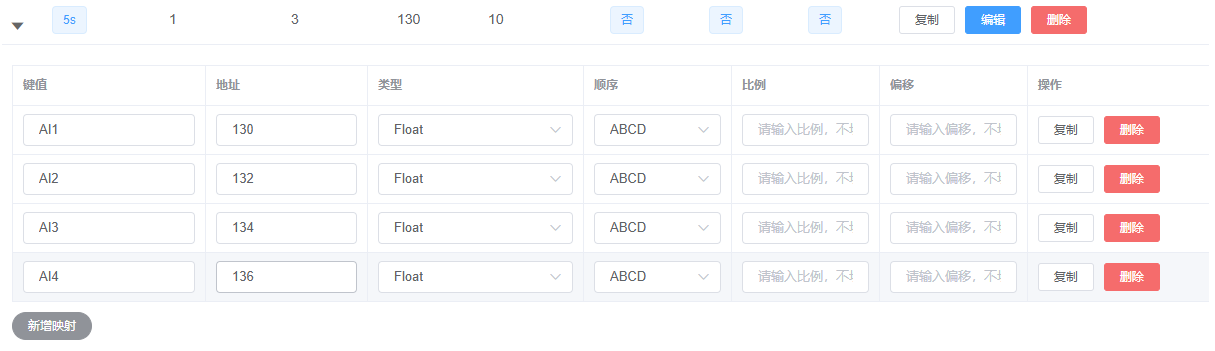

4路模拟量AI的配置，寄存器地址对应130-136，类型为float。
¶ 上位机直接发指令到串口3设置模式和保存参数

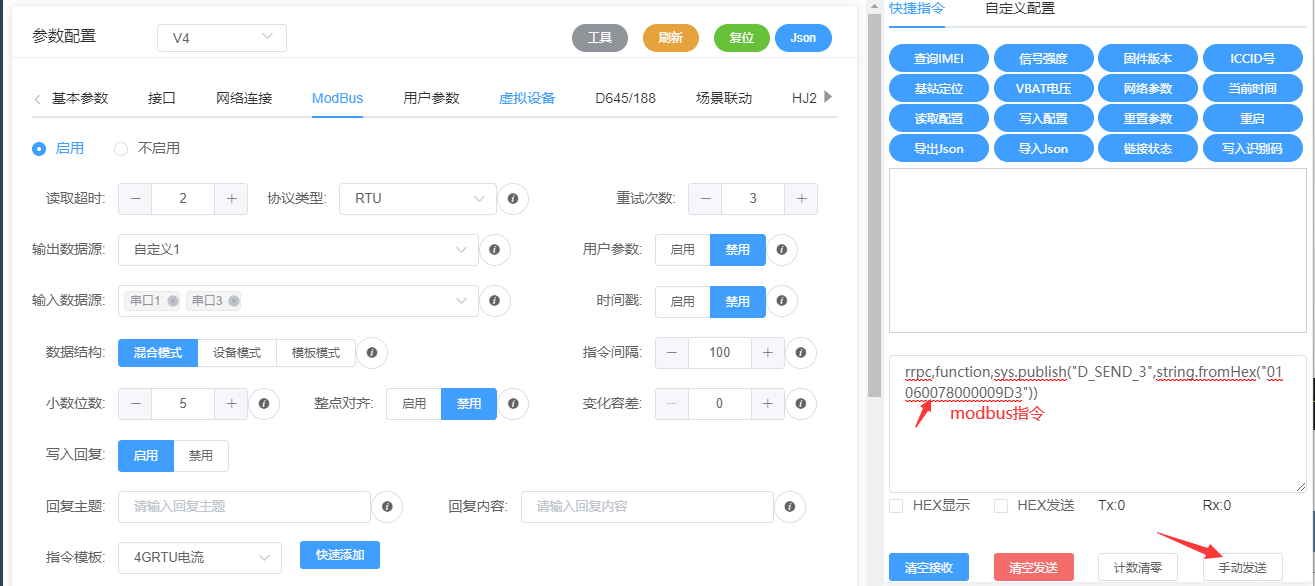

可以直接从上位机直接发指令到串口3设置模式和保存参数，复制指令到上位机右下方框，再点击手动发送。
1、修改模式
例如将AI设置为模式0，模式0均为电压检测，即发送下面的指令。其他模式modbus指令请见此页最后。
rrpc,function,sys.publish(“D_SEND_3”, string.fromHex(“01060078000009D3”))
2、保存参数指令
修改AI模式后，要发送保存参数的指令，断电后修改的AI模式才能保存。
rrpc,function,sys.publish(“D_SEND_3”, string.fromHex(“01060064000109D5”))
¶ DI和DO联动
下面演示DI输入多少,则DO输出多少。例如DI1输入1，则DO1输出1，DI1输入0，则DO1输出0。
在DO和DI配置完成的基础上，再配置一个场景联动即可。在此只演示场景联动的配置，DO和DI的配置请参数上面的教程。

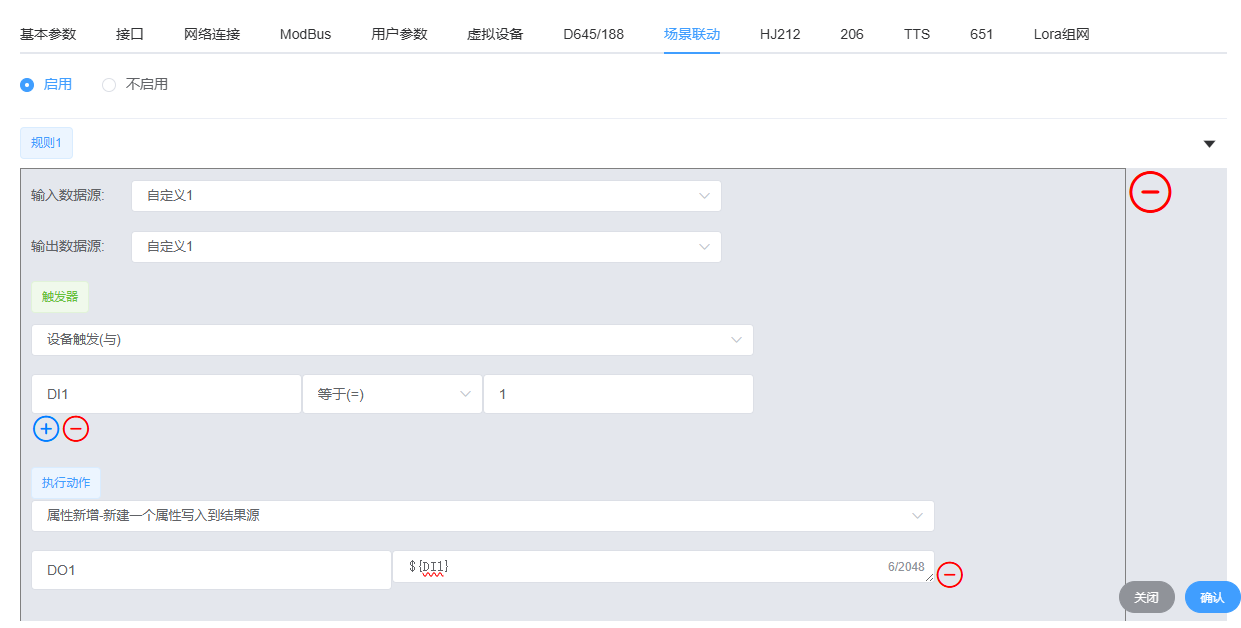

演示两种场景联动配置，方法1：DO1的数据使用魔法值，直接将DI1的数据传给DO1。
方法2：
在场景联动中，需要添加两个规则，第一个规则为DI1输入1，则DO1输出1；第二个规则为DI2输入0，则DO2输出0。

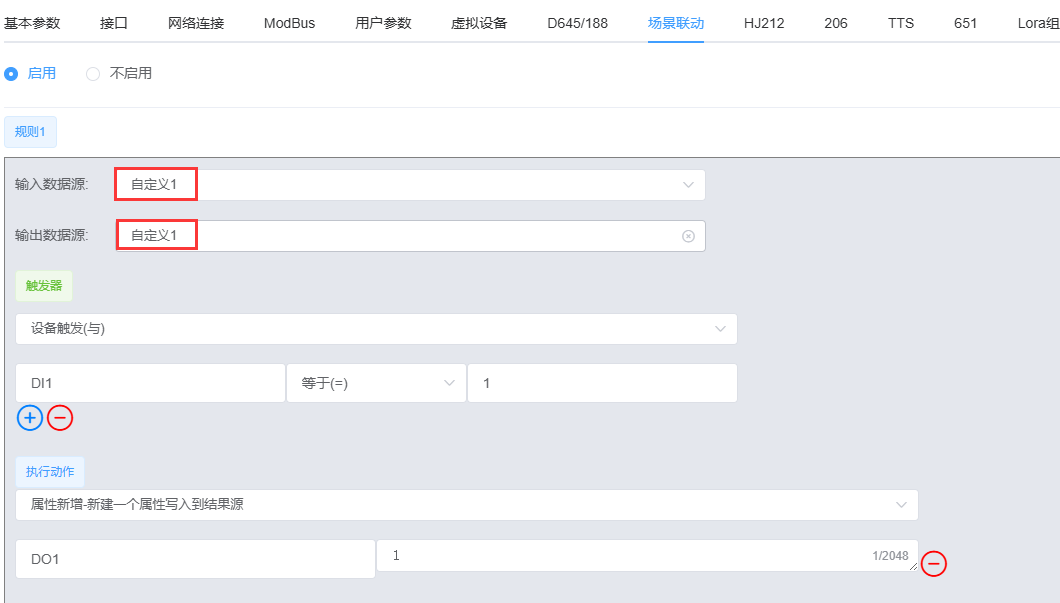

规则1的配置，输入和输出数据源都选自定1，键值和modbus中对应。

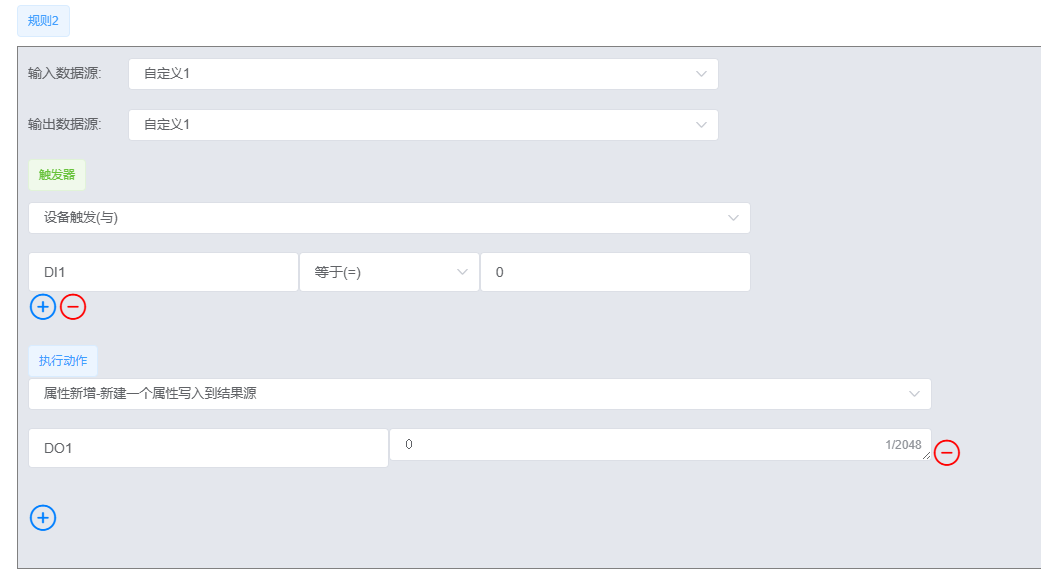

规则2的配置，输入和输出数据源都选自定1，键值和modbus中对应。

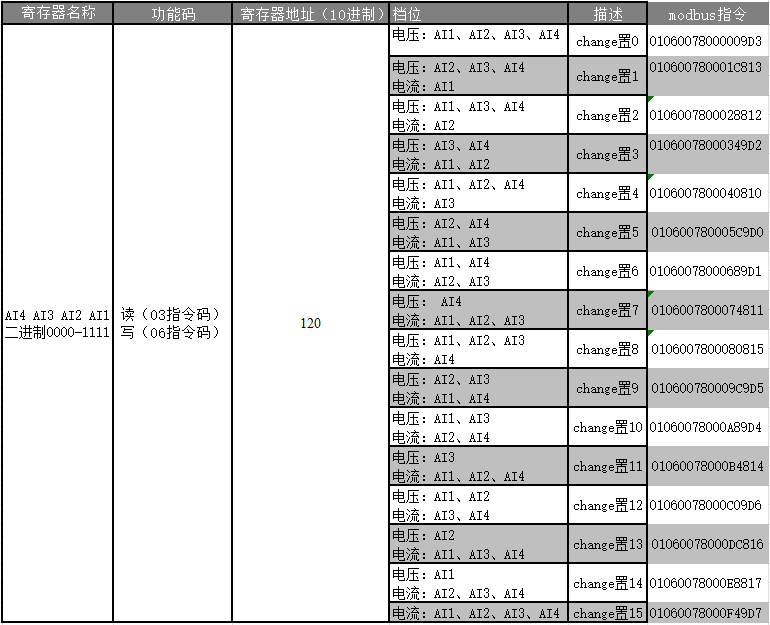

AI的检测模式组合图
¶ 使用案例（5分钟统计一次DI计数值）

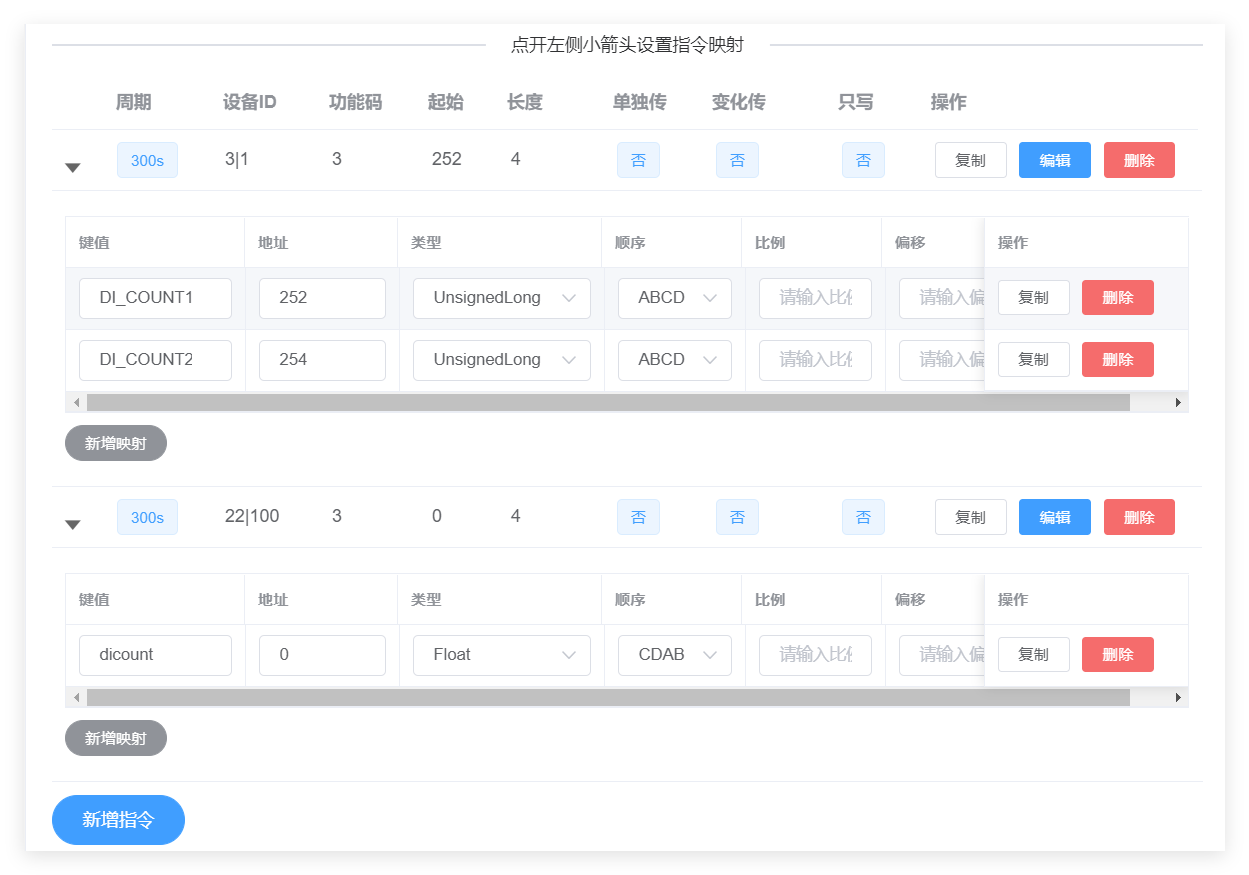

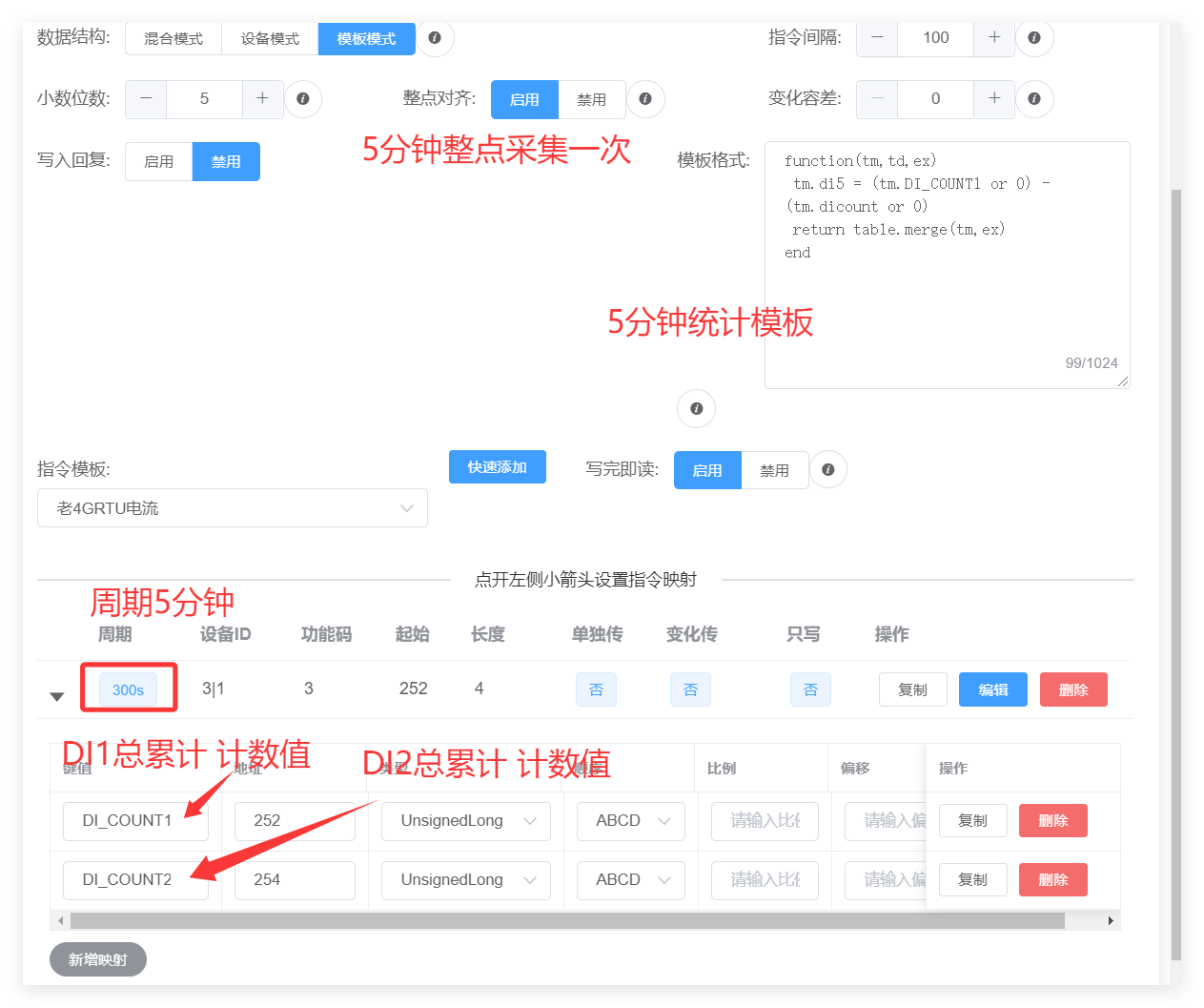

¶ 1.modbus先读取DI计数值 和虚拟设备的值 周期配置成5分钟

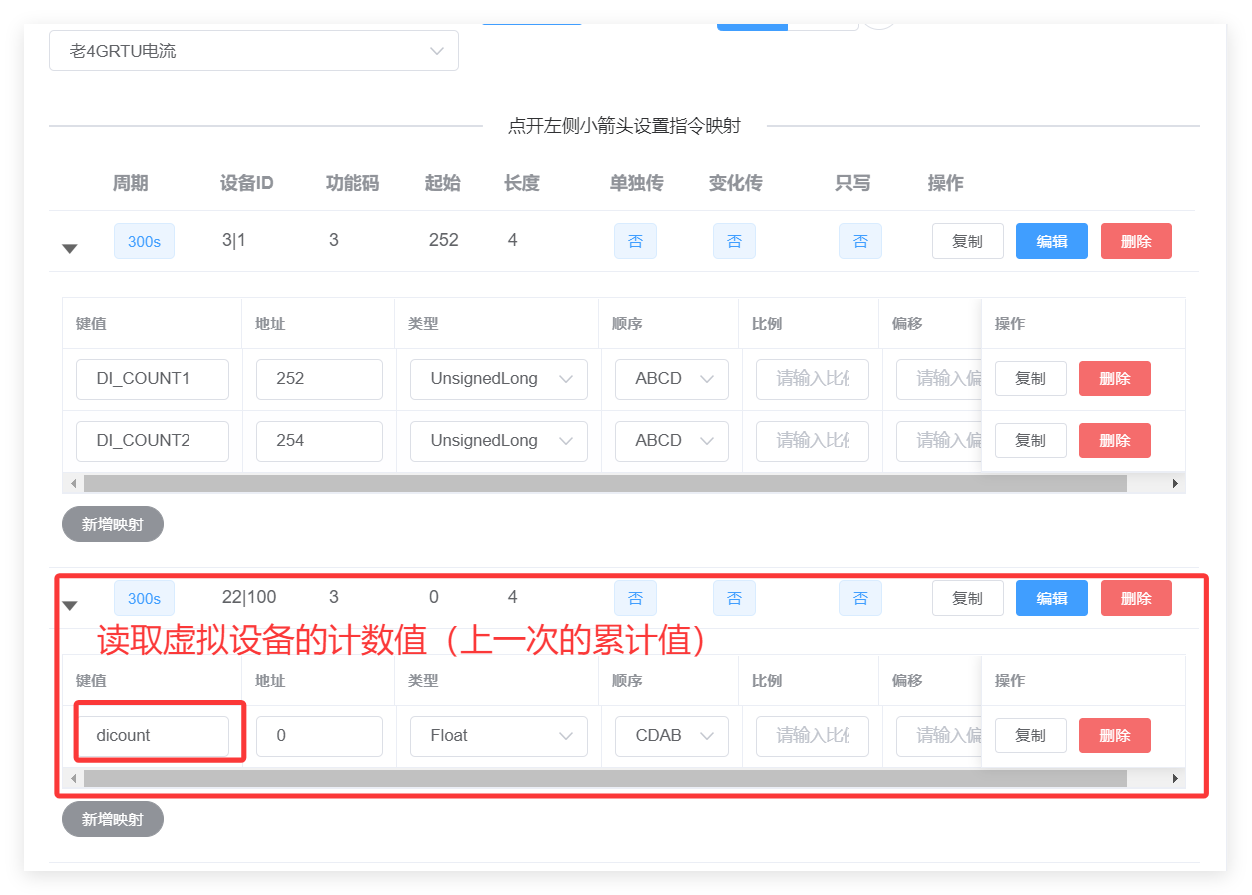

¶ 1） 新增两条modbus读取指令

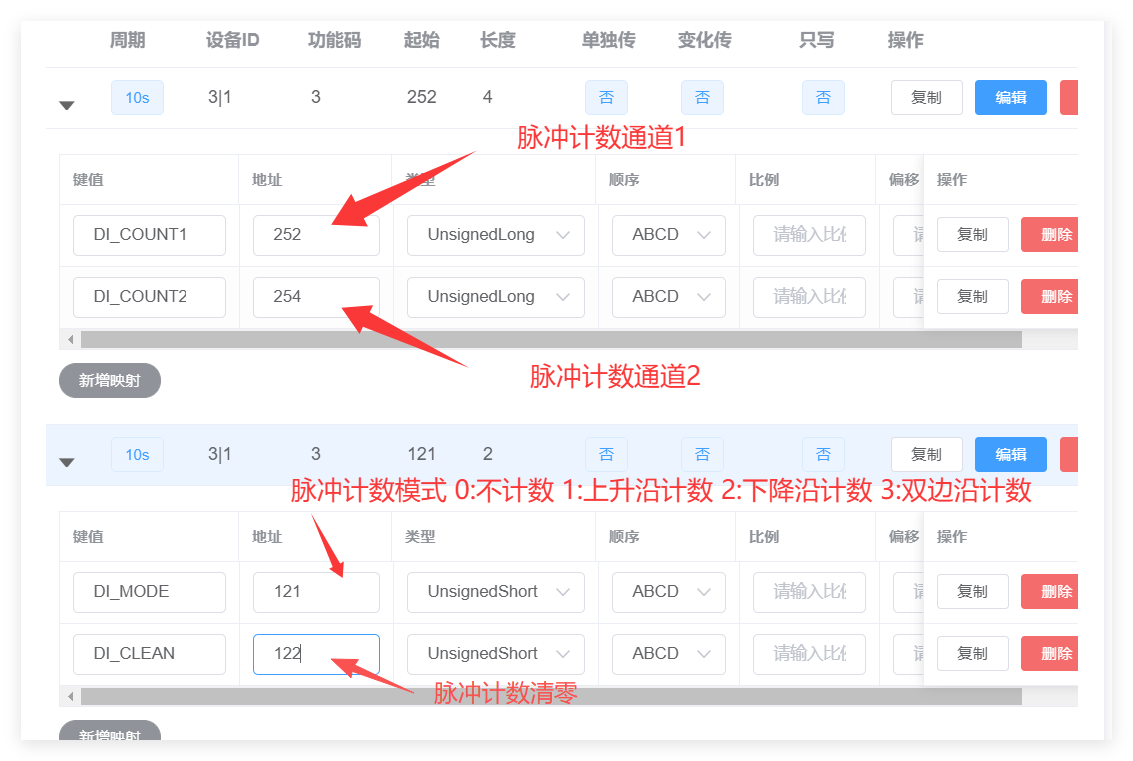

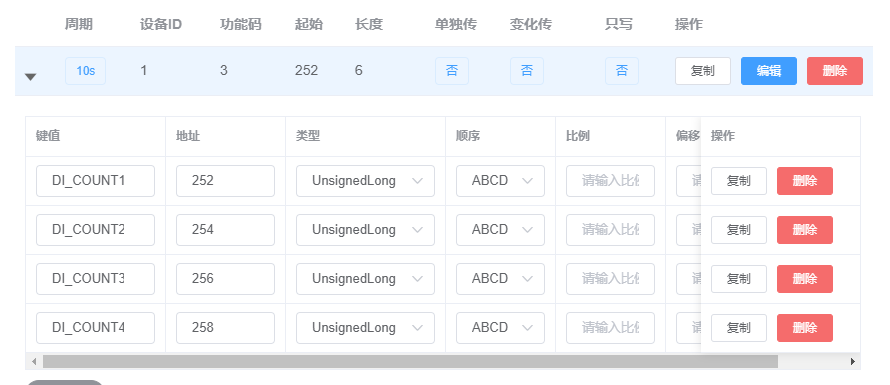

¶ 2） 读取DI计数累计值!

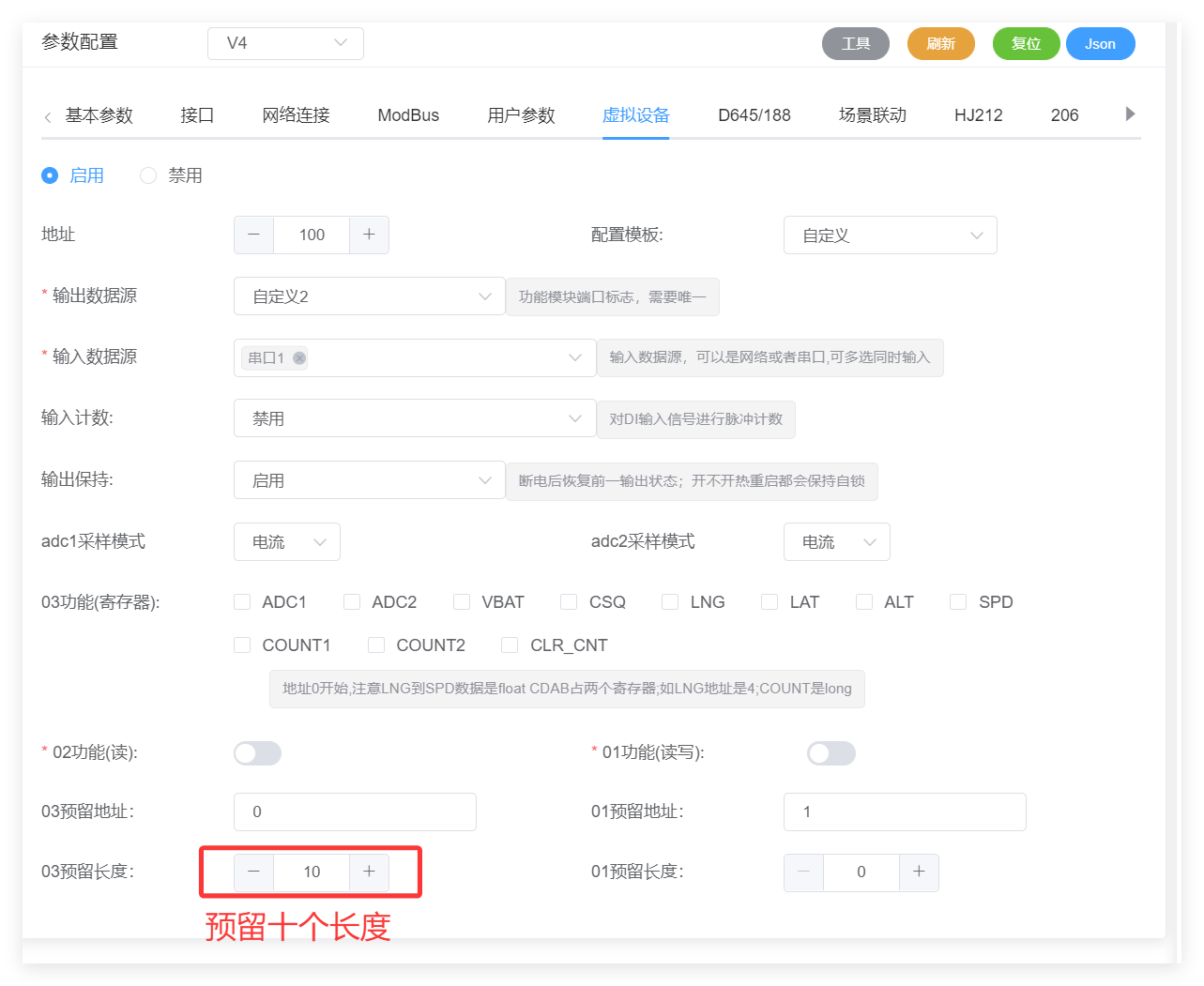

¶ 2.虚拟设备配置预留长度

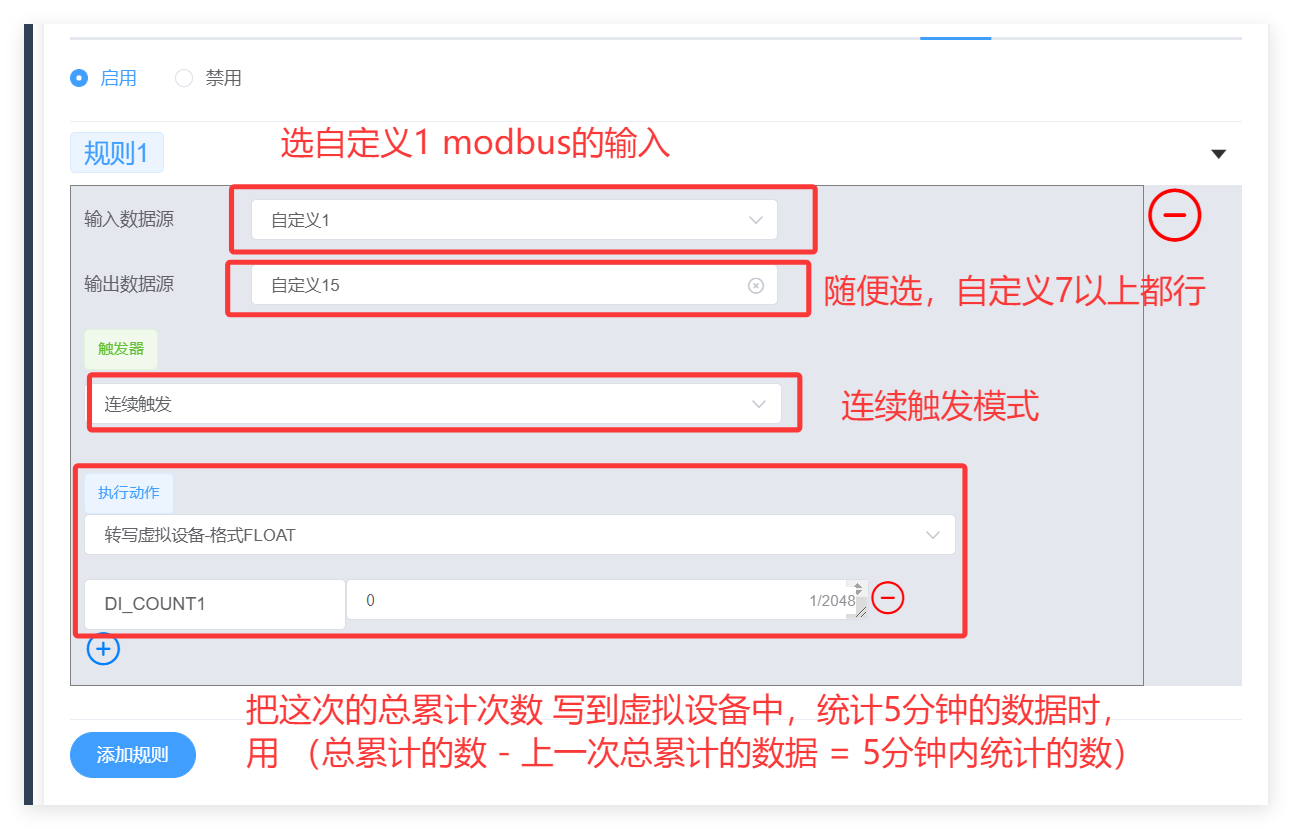

¶ 3.场景联动把上次读到的存到虚拟设备里面

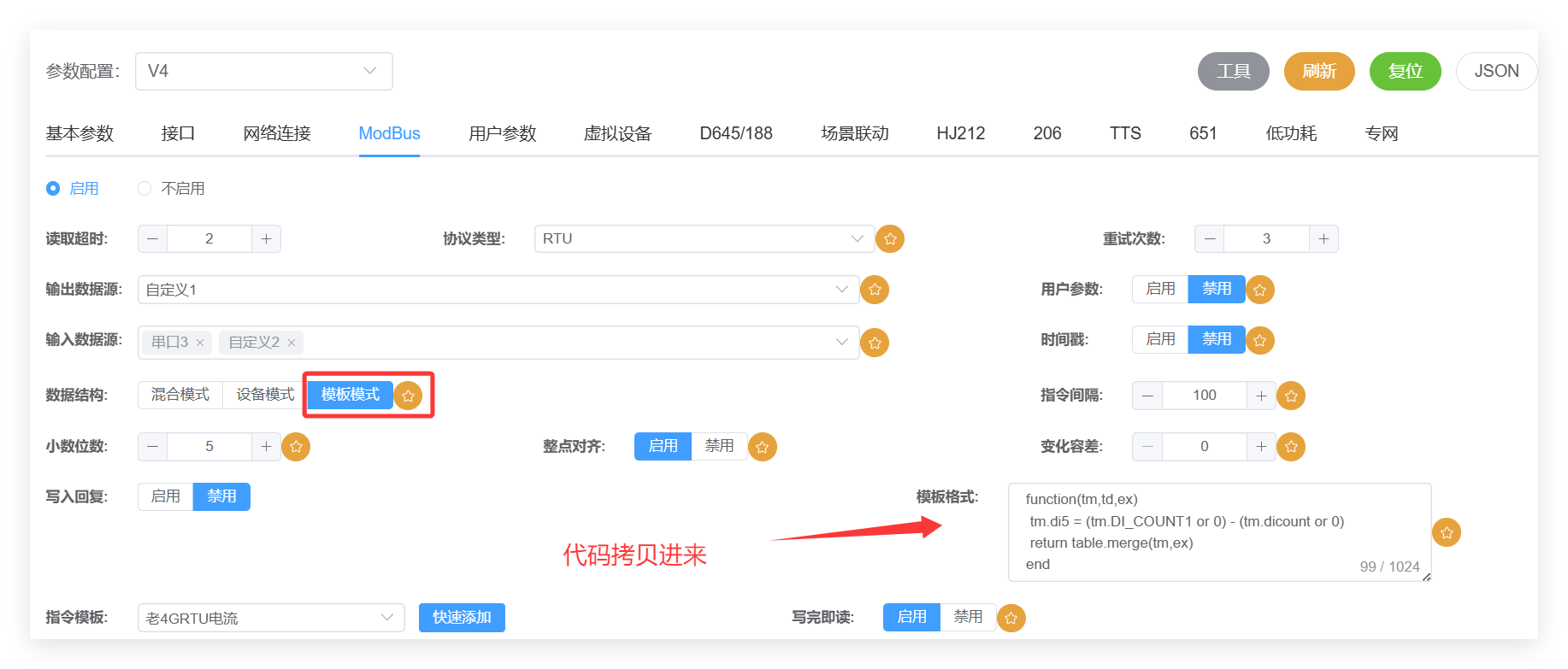

¶ 4.modbus 模板模式参数解析
function(tm,td,ex)
tm.di5 = (tm.DI_COUNT1 or 0) - (tm.dicount or 0)
return table.merge(tm,ex)
end
代码参数解释：
tm.di5: 就是五分钟内的DI计数值
tm.DI_COUNT1: 就是DI的总累计 计数值
tm.dicount:虚拟设备存储的上一次的总累计 计数值

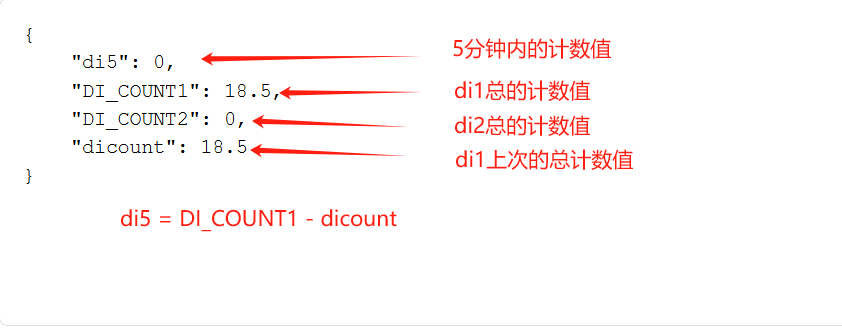

¶ 5.结果示例
¶ 6.快速导入配置 5分钟di计数的配置
{"type":"base","version":"V4","base":{"host":"","param_ver":0,"flow":0,"fota":1,"log":1,"ntp":0,"nnt":3,"shell":[1,60,1],"report":1,"pmod":0,"pswd":"","pins":[13,8,12],"reboot":0,"mqr":[1,20,100,1],"lbs":1,"ofm":0,"eth":[1,"","","",0],"apn":[0,"","",""]},"uconf":[[1,9600,8,0,1,19,1,20,"",0],[],[3,115200,8,0,1,18,1,20,"",0]],"nconf":[[],[],[],[],[],[]],"pnconf":[[]],"param_ver":0,"h2r":[],"mb":[[2,1,21,[3,22],3,0,0,"","","function(tm,td,ex)\n tm.di5 = (tm.DI_COUNT1 or 0) - (tm.dicount or 0)\n return table.merge(tm,ex)\nend",0,100,0,5,3,1,1],[[300,96,"010300fc0004","3"],[["DI_COUNT1",252,"L",1,0.5,0],["DI_COUNT2",254,"L",1,0.5,0]]],[[300,96,"640300000004","22"],[["dicount",0,"f",2]]]],"d6":[],"szy":[],"l6":[[[21],26,"00017216640",0,0,"1234"],{"2219":"di5"}],"up":{},"vd":{"d":[100,22,[1],1,0],"c3":[],"c2":[],"c1":[],"c1u":[1,0],"c3u":[0,10],"cmod":[0,0]},"rule":[[21,35,4,"",[],[[6,"DI_COUNT1","0"]]]],"lp":[],"tts":[]}
¶ 各个DIDO的快速配置
¶ ZL425 固件版本(4.x.x) ZL425（6.x.x）双路串口版快速配置
{"type":"base","version":"V4","base":{"host":"","param_ver":15,"flow":0,"fota":1,"log":1,"ntp":"","nnt":3,"shell":[1,120,1],"report":0,"pmod":0,"pswd":"","pins":[13,8,12],"reboot":0,"mqr":[1,20,100,1],"lbs":1,"ofm":0,"eth":[1,"","",""],"apn":[0,"","",""]},"uconf":[[1,9600,8,0,1,19,1,20,"",0],[],[3,115200,8,0,1,18,1,20,"",0]],"nconf":[[],[],[],[],[],[]],"param_ver":15,"h2r":[],"mb":[[2,1,21,[1,3],1,1,0,"","","",0,100,0,5,3,0],[[10,96,"010300a00004","3"],[["DO1",160,"H",1],["DO2",161,"H",1],["DO3",162,"H",1],["DO4",163,"H",1]]],[[10,96,"01030096000a","3"],[["DI1",150,"H",1],["DI2",151,"H",1],["DI3",152,"H",1],["DI4",153,"H",1]]],[[10,96,"01030082000a","3"],[["AI1",130,"f",1],["AI2",132,"f",1],["AI3",134,"f",1],["AI4",136,"f",1]]],[[10,96,"010300780002","3"],[["change",120,"H",1]]],[[10,96,"010300640001","3"],[["save",100,"H",1]]]],"d6":[],"szy":[],"l6":[],"up":{},"vd":{},"rule":[],"lora":[],"tts":[]}
¶ ZL425单路串口版 固件版本（大于等于6.124.120） 固件版本（小于6.124.120）采用上方第一个配置
{"type":"base","version":"V4","base":{"host":"","param_ver":"0","flow":0,"fota":1,"log":1,"ntp":"","nnt":3,"shell":[1,120,1],"report":0,"pmod":0,"pswd":"","pins":[13,8,12],"reboot":0,"mqr":[1,20,100,1],"lbs":1,"ofm":0,"eth":[1,"","","",0],"apn":[0,"","",""]},"uconf":[[1,9600,8,0,1,19,1,20,"",0],[2,115200,8,0,1,24,1,20,"",0],[]],"nconf":[[],[],[],[],[],[]],"pnconf":[[]],"param_ver":"0","h2r":[],"mb":[[2,1,21,[2],1,1,0,"","","",0,100,0,5,3,0,0],[[10,96,"010300a00004","2"],[["DO1",160,"H",1],["DO2",161,"H",1],["DO3",162,"H",1],["DO4",163,"H",1]]],[[10,96,"01030096000a","2"],[["DI1",150,"H",1],["DI2",151,"H",1],["DI3",152,"H",1],["DI4",153,"H",1]]],[[10,96,"01030082000a","2"],[["AI1",130,"f",1],["AI2",132,"f",1],["AI3",134,"f",1],["AI4",136,"f",1]]],[[10,96,"010300780002","2"],[["change",120,"H",1]]],[[10,96,"010300640001","2"],[["save",100,"H",1]]]],"d6":[],"szy":[],"l6":[],"up":{},"vd":{},"rule":[],"lp":[],"tts":[]}
¶ ZL420快速配置
{"type":"base","version":"V4","base":{"host":"","param_ver":0,"flow":0,"fota":1,"log":3,"ntp":0,"nnt":3,"shell":[1,120,1],"report":1,"pmod":0,"pswd":"","pins":[13,8,12],"reboot":0,"mqr":[1,20,100,1],"lbs":1,"ofm":0,"eth":[1,"","",""],"apn":[0,"","",""]},"uconf":[[1,9600,8,0,1,19,1,20,"",0],[],[3,115200,8,0,1,18,1,20,"",0]],"nconf":[[],[],[],[],[],[]],"pnconf":[[]],"param_ver":0,"h2r":[],"mb":[[2,1,21,[3,1],1,0,0,"","","",0,100,0,5,3,0,0],[[10,96,"010300820004","3"],[["AI1",130,"f",1],["AI2",132,"f",1]]],[[10,96,"010300960002","3"],[["DI1",150,"H",1],["DI2",151,"H",1]]],[[10,96,"010300a00002","3"],[["DO1",161,"H",1],["DO2",160,"H",1]]],[[10,96,"010300780001","3"],[["change",120,"H",1]]],[[10,96,"010300640001"],[["save",100,"H",1]]]],"d6":[],"szy":[],"l6":[],"up":{},"vd":{},"rule":[],"lp":[],"tts":[]}
¶ ZL463快速配置
{"type":"base","version":"V4","base":{"host":"","param_ver":0,"flow":0,"fota":1,"log":3,"ntp":0,"nnt":3,"shell":[1,120,1],"report":1,"pmod":0,"pswd":"","pins":[13,8,12],"reboot":0,"mqr":[1,20,100,1],"lbs":1,"ofm":0,"eth":[1,"","",""],"apn":[0,"","",""]},"uconf":[[1,9600,8,0,1,19,1,20,"",0],[],[3,115200,8,0,1,18,1,20,"",0]],"nconf":[[],[],[],[],[],[]],"param_ver":0,"h2r":[],"mb":[[2,1,21,[3,1],1,0,0,"","","",0,100,0,5,3,0],[[10,96,"010300820004","3"],[["AI1",130,"f",1],["AI2",132,"f",1]]],[[10,96,"010300960002","3"],[["DI1",150,"H",1],["DI2",151,"H",1]]],[[10,96,"010300a00002","3"],[["DO1",161,"H",1],["DO2",160,"H",1]]],[[10,96,"010300ea0008","3"],[["LAT",234,"f",1],["LON",236,"f",1],["ALT",238,"f",1],["SPD",240,"f",1]]],[[10,96,"010300780001","3"],[["change",120,"H",1]]],[[10,96,"010300640001"],[["save",100,"H",1]]]],"d6":[],"szy":[],"l6":[],"up":{},"vd":{},"rule":[],"lp":[],"tts":[]}
¶ 新版带AI ZL520
{"type":"base","version":"V5","base":{"host":"","param_ver":0,"flow":0,"fota":1,"log":3,"nnt":3,"shell":[1,60,1],"report":1,"pmod":0,"pswd":"","pins":[33,12,35],"reboot":0,"mqr":[1,20,100,1],"ofm":0,"ntp":1,"eth":[1,"","",""],"wifi":[1,"","",-1,1],"dns":["",""]},"uconf":[[1,9600,3,0,1,4,1,20,"",0],[2,115200,3,0,1,-1,1,20,"",0],[]],"nconf":[[],[],[],[],[],[]],"param_ver":0,"h2r":[],"szy":[],"mb":[[2,1,21,[2],1,0,0,"","","",0,100,0,5,3,0,1],[[10,96,"010300a00004","2"],[["DO1",160,"H",1],["DO2",161,"H",1]]],[[10,96,"010300960004","2"],[["DI1",150,"H",1],["DI2",151,"H",1]]],[[10,96,"010300820008","2"],[["AI1",130,"f",1],["AI2",132,"f",1]]]],"up":{},"vd":{},"rule":[],"l6":[],"d6":[]}
